Lumin M1 (M-1) Integrated amplifier with streaming player, MQA, Roon 2x 60W

Brand:	Lumin
Power (RMS):	2x 60W@8Ω, 2x 100W@4Ω
Class:	D
Internet Radio:	Yes
USB DAC:	No

Customer ratings:	1 2 3 4 5
Pros:
Cons:

Lumin M1 (M-1) Integrated amplifier with streaming player, MQA, Roon 2x 60W

Description
Functionality
Specifications
Reviews / tests
About brand

Description

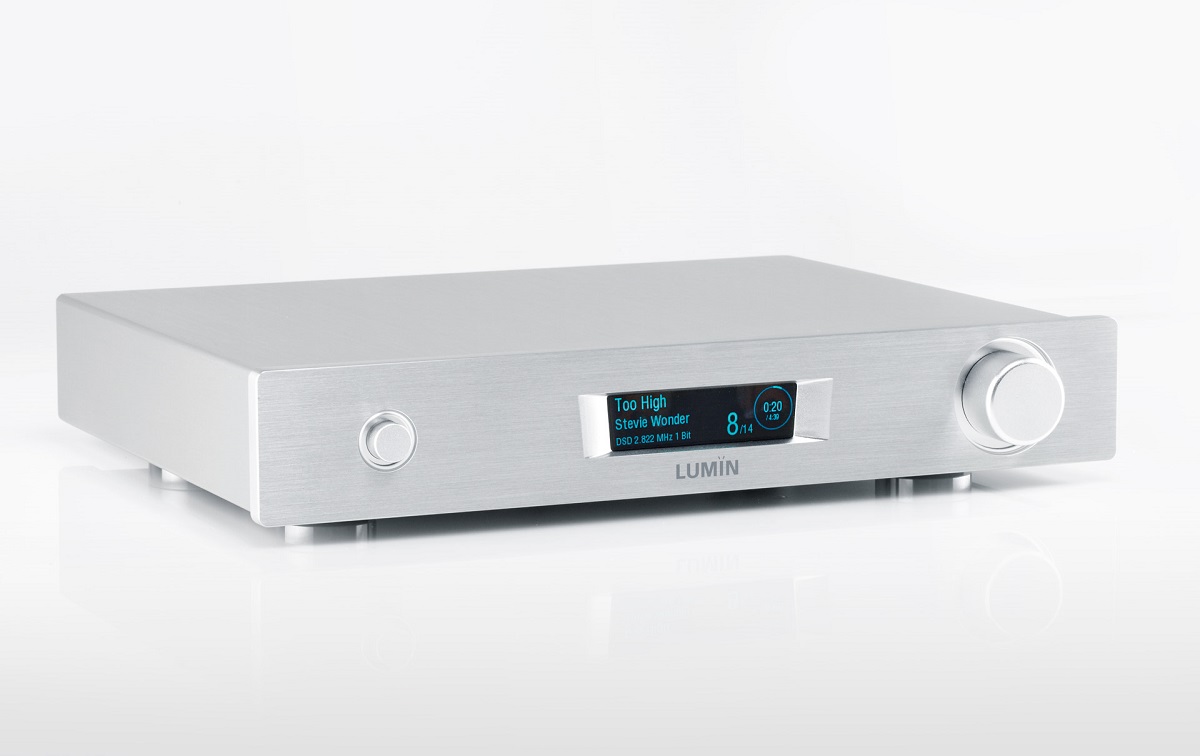

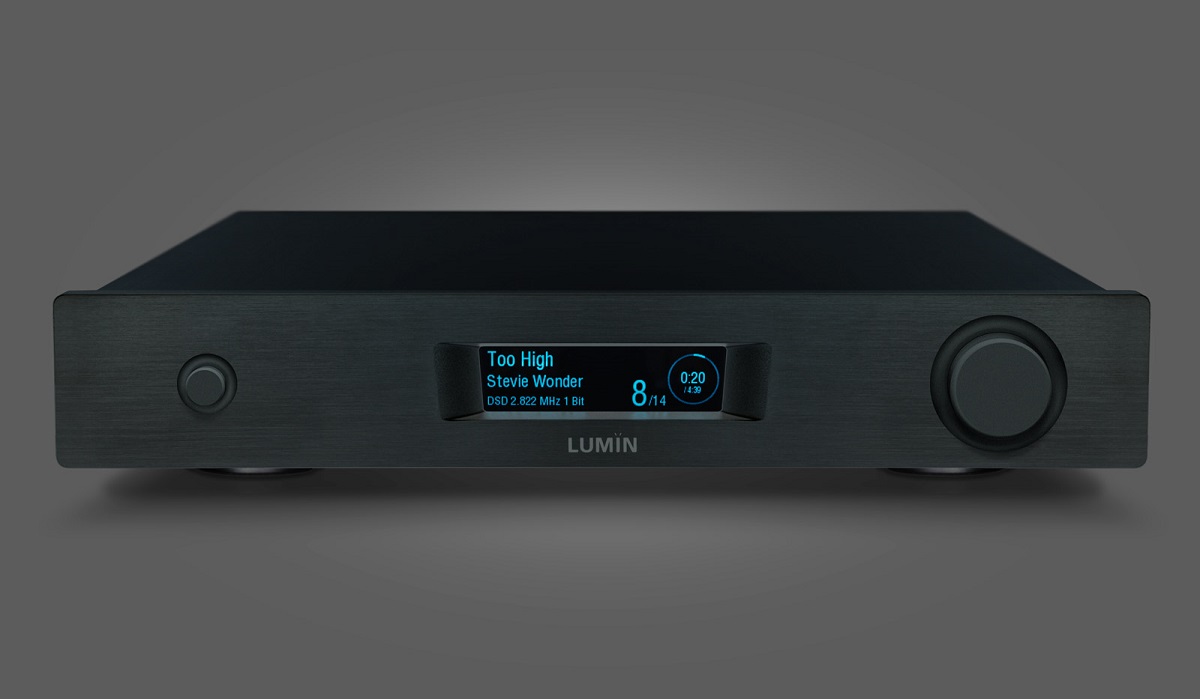

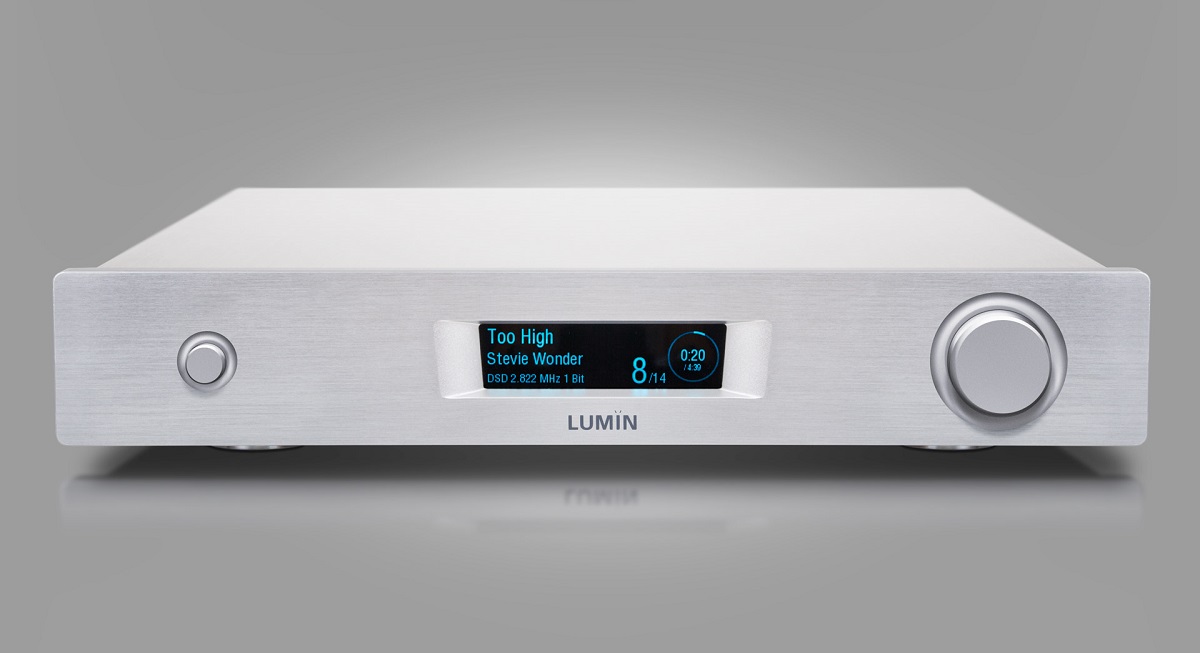

Lumin M1

WHY LUMIN M1?
With LUMIN M1, our aim was clear – take all the award-winning sonic characteristics that the LUMIN music players are renowned for and surprise people with just how amazing an integrated system can sound. 18 months of continual development lead to our uniquely efficient design including an oversized switching power supply and a fully-digital signal path all the way to the speaker outputs.

The same LUMIN musical delivery, with integrated amplification

Compact system
Class-D power amplification retains digital signal path right to the speaker outputs
60W @ 8 Ohm Speaker / 100W @ 4 Ohm Speaker
Oversized switching power supply
Includes DSD128 5.6Mhz 1-bit playback
PCM 44.1–384kHz 16–32-bit

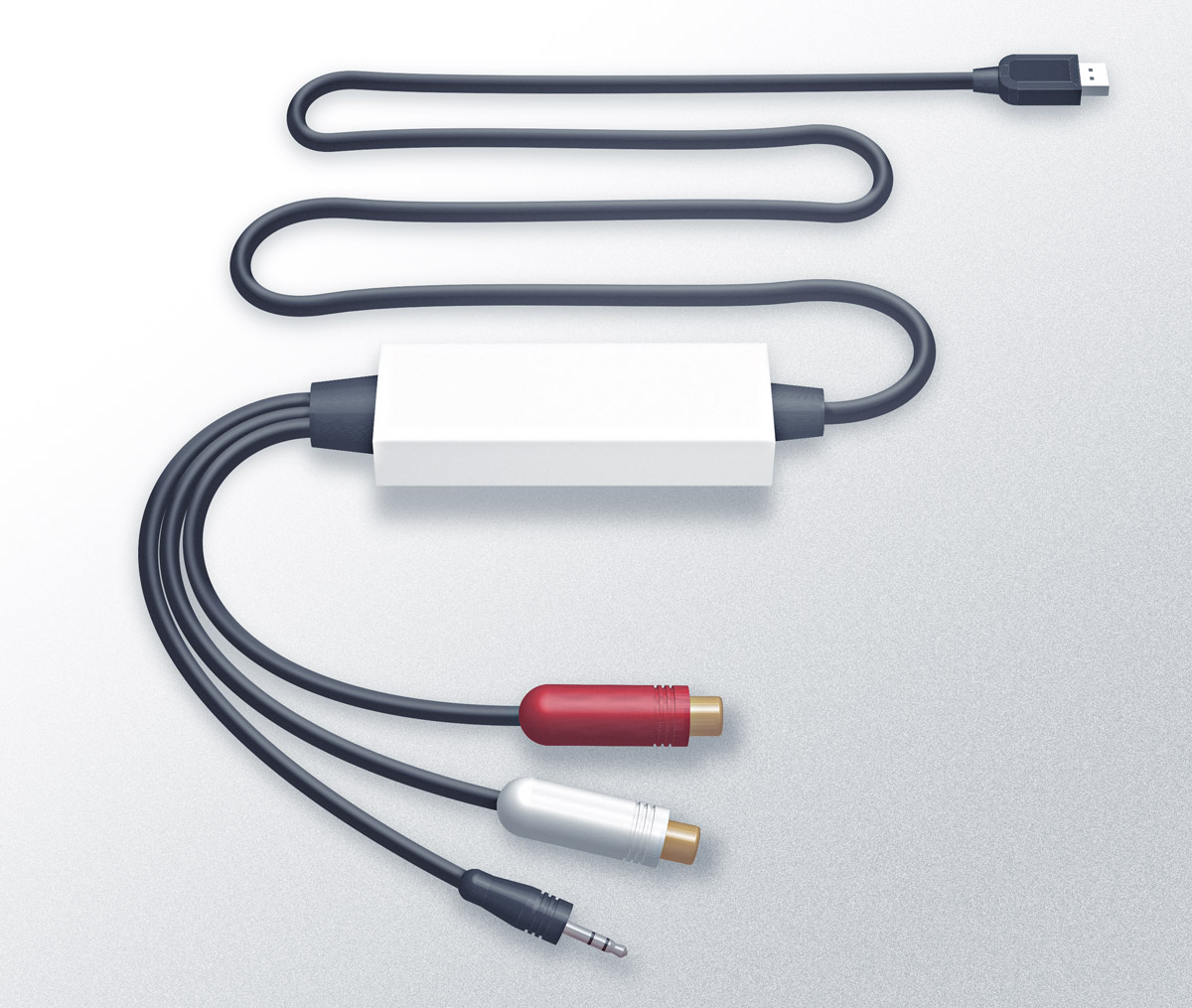

Analogue input via included adapter
Volume controlled by physical knob, or in-app

All the usual LUMIN refinements

From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs

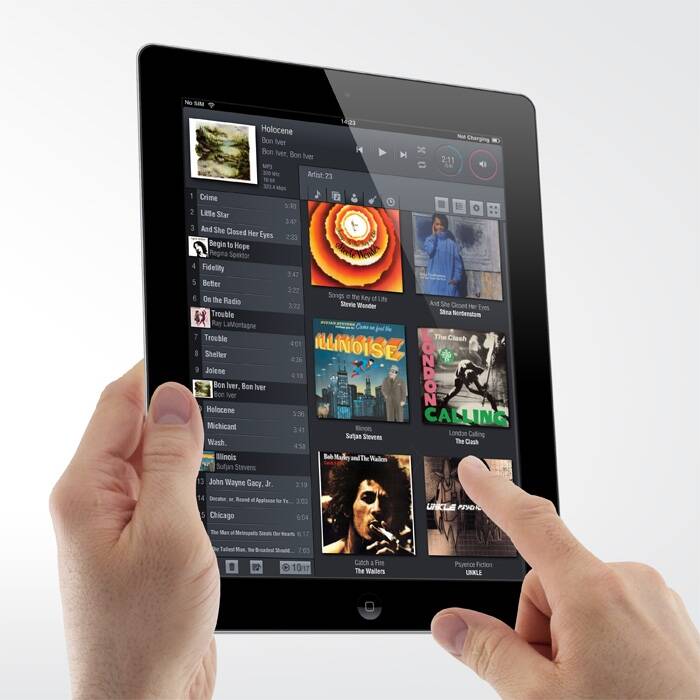

The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.

Product is new, originally packed.

Functionality

Streaming players allow you to read and decode digital music in the form of compressed, uncompressed files, internet radios and others. The source is usually a network server or a personal computer, communication takes place both through the Ethernet port (via a cable) and wireless Wi-Fi communication.

The overwhelming majority of streaming players have a USB port for flash drives.

The streaming player almost always has a built-in digital-to-analog converter DAC and a set of analog outputs for the amplifier as well as digital, enabling the connection of an independent digital-to-analog converter to further improve the sound quality.

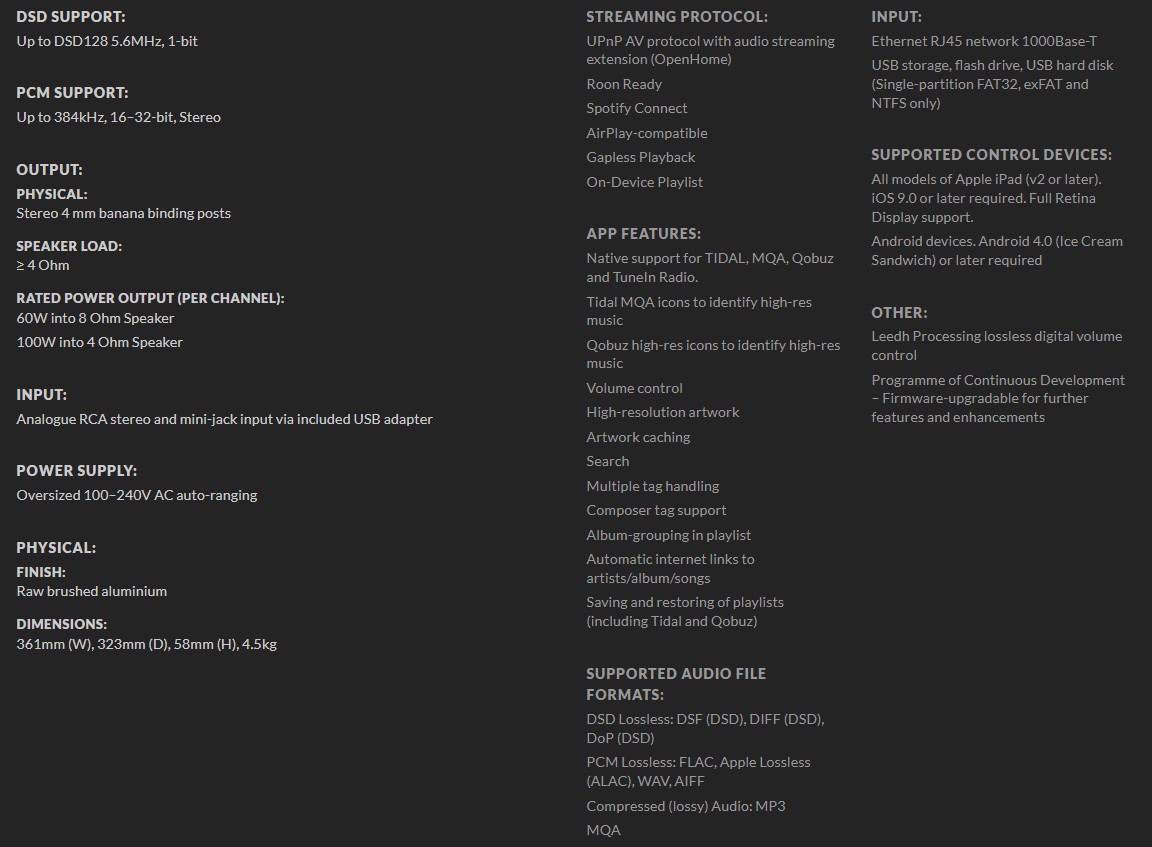

Specifications

Power (RMS):	2x 60W@8Ω, 2x 100W@4Ω
USB formats:	equal like in ethernet
Ethernet formats:	AAC ALAC AIFF FLAC MP3 WAV DSD 128 (5.6MHz) MQA DIFF DSF DoP (DSD over PCM)
Class:	D
AUDIO SECTION:	------
MULTIMEDIA FUNCTIONALITY:	------
Wi-Fi: Wi-Fi is a technology designed to build local area wireless networks. It allows an electronic device to participate in computer networking in 2.4 GHz USF and 5 GHz SHF ISM radio bands. The standard characterizes relatively long range (up to 120 feet). Device audio with Wi-Fi can play music sent from Wi-Fi transmitters, like smartphones, tablets or PCs and MACs. Wi-Fi is able to convey audio signal using a losless codec. There is absolutely no loss of audio fidelity. Some devices (e.g. VOCO) may link with musical services, like YouTube.com or Spotify via Wi-Fi. Source: RMS.pl information service	NO
UPnP: Universal Plug and Play (UPnP) is P2P type protocol that enable networked hardware devices and software applications to communicate and work together without end user configuration. It's an open architecture. Computer which supports UPnP automatically configures its network interface card and shares informations about its gateway. Thereby compatible devices and network applications may be instantly turned on without additional configuration (except for networks with password). In AV solutions a main goal of UPnP is interoperability between controllers and devices, e.g. enabling audio files to transmit from a NAS to an AV device without necessity for using control device. Source: RMS.pl information service	YES
AirPlay: Apple's own wireless platform, enabling users to transmit digital audio or video content from iPods, iPhons, iPads etc. to other AirPlay supported devices (wireless speakes, AV receivers). Compared to Bluetooth, AirPlay has the capability of playing acorss a much larger distances between devices. Therefore, AirPlay uses lossless audio compression. Source: RMS.pl information service	AirPlay 1 Yes
Bluetooth: Wireless platform that can be found in extremely wide palette of devices. In audio, it allows to connect between devices and stream music straight from phone to speakers, AV receivers etc. Compared to AirPlay, Bluetooth-connected devices need to be close proximity (10-15m). Furthermore, it streams in lossy compression, but is also capable of sounding very good, especially with AAC and aptX codecs. Source: RMS.pl information service	NO
Dedicated application: Control app avalaiblity on smartphones and tablets with Androd, iOS (Apple devices: iPhone, iPad, iPod etc.) or other (e.g. Windows Phone). Source: RMS.pl information service	Android iOS (Apple iPhone/iPod/iPad)
Gapless: Uninterrupted playback of audio tracks, without gaps between them. Particularly useful with concerts, concept albums, electronic music or classical music. Source: RMS.pl information service	YES
Internet Radio: Avalaiblity to play digital internet radio, transmitting streaming auditions. Source: RMS.pl information service	Yes
Music services: Services, applications and streamers support. Thanks to that feature, you can play music e.g. from Spotify with AV receiver or streaming player. Source: RMS.pl information service	TuneIN Qobuz Tidal Spotify Connect Tidal Masters
USB DAC: Allows to stream sound from your computer without sound card. Source: information service RMS.PL	No
USB Apple iPhone/iPod input: Apple devices support via device USB port. Source: RMS.pl information service	YES
USB Input (mass storage mode): Devices and file systems supported by USB port. Source: RMS.pl information service	Pendrive FAT16/32 Hard drive FAT16/32 Apple iPhone/iPad/iPod Pendrive NTFS Hard drive NTFS
INPUT/OUTPUT:	------
Headphone output: Type of headphone output in device. Important - if your headphones using different type od connector, you still can use them with device, thanks to suitable adapter. Source: RMS.pl information service	No
Ethernet/LAN input: Ethernet input allows to connect to device LAN cable from router, computer or server. It significantly raises device capabilities, enlarging it by playing files through DLNA, supporting network apps or softwarte actualizations. Source: RMS.pl information service	YES
Trigger: Trigger is used to remote start-up connected devices by sending current signal (typically 12V) from main device. Then, after turning it on (eg. AV receiver) other devices (eg. Blu-ray player, phono preamp, etc.) start-up automatically. Source: RMS.pl information service	NO

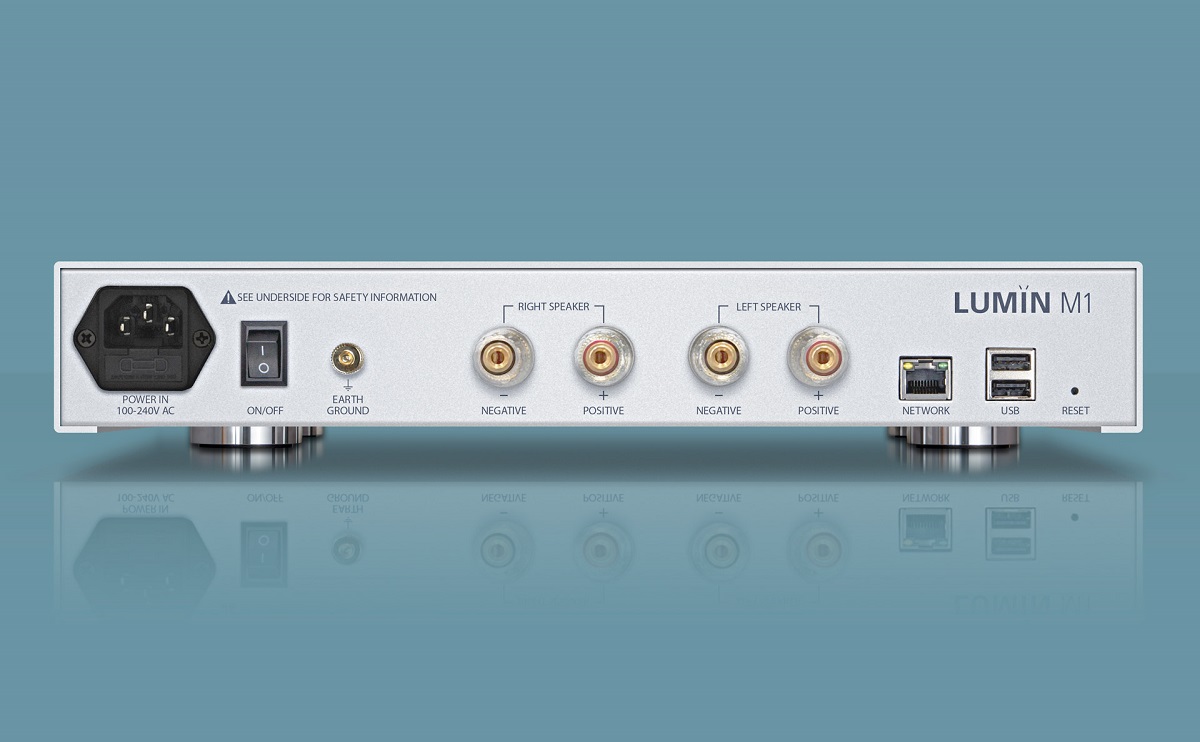

Other connectors: The other types of connectors, described in the above specifications. Source: RMS.pl information service	RJ-45 USB
OTHERS:	Compact case with solid aluminium CNC front panel
::	DSD SUPPORT up to DSD128 5.6MHz, 1-bit; PCM SUPPORT up to 384kHz, 16–32-bit, Stereo
::	Speakers with an impedance above 4 Ohms are supported
Power supply:	Oversized 100–240V AC auto-ranging
Height:	58mm
Width:	361mm
Depth:	323mm
Weight:	4.5kg
Warranty:	24 months
Google Chromecast (Google Cast):	NO
